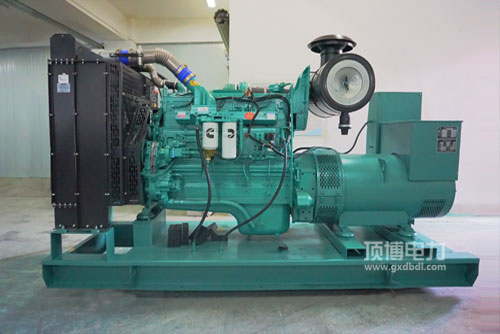

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用打着机柴油划算性好: 较为先进的柴油把握系统，独特的STC、ESTC 分类把握系统，特种构思的活塞环顶上丙烷燃烧物室，髙压喷射出柴油，多方面做雾化，丙烷燃烧物多方面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用发起机瞬态功效成绩突出: 完美无瑕的发起机整体风格结构设计，协调一致康明斯独一无二的EFC系统的，把控精确度较高，出错日子快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用打火机升输出功率高: 总布局构思紧凑型轿车.内部结构搭建适当合理，正常运作市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷智能机型 QSNT. QSK19. QSK38. QSK50无法我国非方向3.分阶段及北美地区Tier2. Tier 3排放量标准规范要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件应得性好， 起主观因素启动及运营维修方便，的成本费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作电压比率 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观简约时尚的尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质量管理 Dry Weight   940kg

224-310KW康明斯发电站用热车机的基本特征：面积小， 缩减变高， 隔栅气预热，有利于开始，手机端车载导航电的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机款式	经常用电率(kW)Prime Power	备品工率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
